RPC handling architecture

RPC handling architecture#

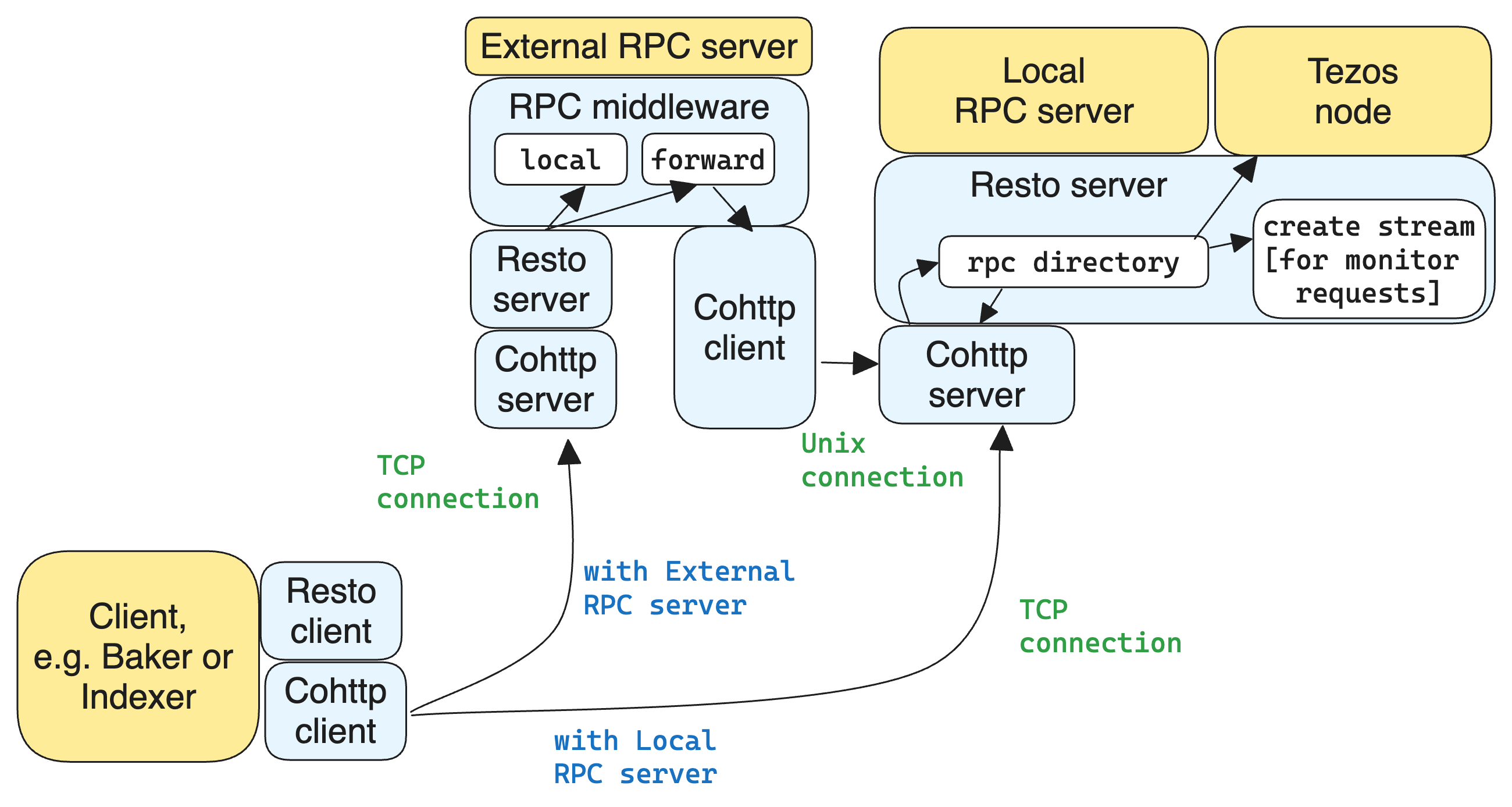

Components of Local and External RPC servers

The Cohttp library is a vendored component responsible for handling HTTP requests and responses, providing the core functionality for HTTP communication in both the Local and External RPC servers.

Resto is a library for declaratively defining services, binding them to given paths, and then either starting an RPC server to serve the RPCs on these paths or making RPC calls to these services. For monitoring requests, a stream is created and updates are sent out as soon as new data is available. Resto is responsible for the following:

  • Providing primitives to describe services.

  • Assembling the services into directories which are essentially maps of paths and methods to services.

  • Spinning up a Cohttp server that serves the chosen directory.

  • Making requests to services as a client. The client automatically builds paths based on parameters to the service, assembles other HTTP details, and parses the response.

Additionally, Resto provides features for configuring ACL and for serving a self-description service - a service that describes all services of a directory.

In the rest of the document, we will use the term “Resto server” (as it is called in the resto library), but it is worth clarifying that the Cohttp server is the actual server which listens for events. Resto server is sitting on top of Cohttp server, providing its handlers for events. Resto server is not listening for events on its own but it handles the events. So they split the functionality:

  • Cohttp listens and involves event handlers

  • Resto provides handlers for events

The RPC middleware module in the External RPC server receives accepted connections from the Resto server. Depending on the RPC type, it either handles the underlying RPC request locally or forwards it to the Local RPC server next to the Tezos node (they share the same PID) by initiating a connection to it. When forwarding, the RPC middleware maintains a mapping between the accepted and the initiated connections. If the client of the initial RPC request dies or closes a connection, the RPC middleware is notified by Resto and then closes the corresponding initiated connection to the Local RPC server.

RPC server initialization#

Local RPC server and External RPC server are initialized at Tezos node start in src/bin_node/node_run_command.ml. Each of them calls launch in src/lib_rpc_http/RPC_server.ml for a Resto server.

An RPC server is declared in src/lib_rpc_http/RPC_server.ml by Resto_cohttp_server.Server.Make. At launch, Resto RPC server takes 2 callbacks:

  • callback - the main callback for accepted connections

  • conn_closed - the callback notifying about the connection closed externally, e.g. by EOF

Resto server launches Cohttp server which also takes callback and conn_closed plus one more callback:

  • sleep_fn - a callback implementing sleep with desired timeout which is used to listen for EOF while the main callback is unresponsive handling the request.

Resto provides a default callback implementation, resto_callback in resto/src/server.ml, which serves Resto directory.

The forwarding logic is handled in file src/lib_rpc_http/RPC_middleware.ml which defines proxy_server_query_forwarder.

Connection management#

The Client, Baker or Indexer can initiate RPC requests. As a result, a TCP connection is established to the Tezos Node or to the External RPC server depending on the settings in the Client, Baker or Indexer.

The External RPC server decides based on the RPC endpoint type if the request has to be handled locally or should be forwarded to the Tezos node. For performance reasons External RPC server tries to offload Tezos node.

If the request is forwarded, RPC middleware initiates a new request that is sent to the Tezos node via an initialized Unix connection, using Cohttp client. From now on, Cohttp client needs to monitor the connection health to notify the Client/Baker/Indexer if the connection died.

This becomes critical as some requests are endless (e.g. /monitor/heads/main or /chains/main/mempool/monitor_operations). The Client/Baker/Indexer have no timeout for that and the responsibility of keeping these connections healthy is on External RPC server.

The Cohttp server monitors the health of the Unix connection. If EOF is received, RPC middleware is notified. Then it closes the connection towards the Client/Baker/Indexer. See Cohttp functions handle_request() in cohttp/cohttp-lwt/src/server.ml and wait_eof_or_closed in cohttp/cohttp-lwt-unix/src/io.ml.

Cohttp uses Conduit library for low-level operation with connections. The Unix file descriptor of the connection is kept within Cohttp and is hidden for higher levels of the stack which makes debugging quite complicated. Cohttp server passes the closing function to the Resto server allowing it to close the connection if the forwarding operation failed.

The RPC server provides its callbacks to Cohttp which actually starts a server, receives requests and involves the provided callbacks. RPC server launches Cohttp as RPC_server.launch in src/lib_rpc_process/main.ml. The callback conn_closed takes a connection ID. This connection ID is provided by Cohttp when the connection is created and then Resto stores it in forwarder resources. Resto creates a new forwarded connection in make_transform_callback and stores the connection ID and a closing function in forwarder_resources in src/lib_rpc_http/RPC_middleware.ml.

The number of callbacks is confusing. So let’s take a closer look to src/lib_rpc_http/RPC_middleware.ml:

  • Cohttp runs a server. So a connection request received from Client/Baker/Indexer/ arrives at Cohttp and then passed to Resto via make_transform_callback.

  • Resto passes the callback to Cohttp at server start to deal with a connection which has to be closed. As it is provided at server start, it takes connections storage and a connection ID as an input. The provided callback is essentially forwarding_conn_closed as it handles dead forwarded Unix connection. Therefore, Resto keeps a mapping of connections from Client/Baker/Indexer to the shutdown function on the corresponding forwarded connections towards the Tezos node. So if a client dies, the connection towards Tezos Node is also closed.

So when a connection from Client/Baker/Indexer is received, Resto is involved via make_transform_callback. And if that connection dies, Cohttp invokes forwarding_conn_closed. If the connection is handled locally by External RPC server, Resto does nothing. If the request was forwarded, Resto will call shutdown for the Unix connection towards Tezos node.

The case of streams and chunks#

In Resto, service handlers return an 'a Answer.t (as defined in resto/src/resto_directory.ml). The type Answer.t models the different possible HTTP status codes. Here’s an excerpt:

type ('o, 'e) t =
  [ `Ok of 'o (* 200 *)
  | `Not_found of 'e option (* 404 *)
  … ]

The full type definition has more variants for more codes. Interestingly, it actually has three different variants for the code 200 (OK).

type ('o, 'e) t =
  [ `Ok of 'o (* 200 *)
  | `OkChunk of 'o (* 200 *)
  | `OkStream of 'o stream (* 200 *)
  …]

Ok#

`Ok is for just returning a value. No big deal. The handler just returns a value; the server serialises this value for the body of the HTTP response.

        sequenceDiagram
    participant client as client
    participant server as server
    participant handler as handler
    client-->server: handshake
    client->>server: data (HTTP request)
    server->>handler: call service handler
    handler->>handler: compute
    handler->>server: return Ok
    server->>client: data (HTTP response, 200)
    server->>client: close

OkChunk#

`OkChunk is for returning values which are very large. When a handler returns `OkChunk, it is the handler’s way of instructing the server to send the response over as multiple chunks. This reduces the peak CPU and I/O usage of the server which is nicer for the health of the octez-node process.

The server transmits the chunks via the chunked transfer encoding. In this HTTP response format, the server sends a series of chunks with size headers and separators (see link). The server closes the connection only once all the chunks have been sent.

        sequenceDiagram
    participant client as client
    participant server as server
    participant handler as handler
    client-->server: handshake
    client->>server: data (HTTP request)
    server->>handler: call service handler
    handler->>handler: compute
    handler->>server: return OkChunk
    server->>client: data (HTTP response, 200)
    server->>client: data (chunk)
    server->>client: data (chunk)
    server->>client: data (chunk)
    server->>client: close

The client recovers the data by deserialising the concatenation of all the chunks received.

Note that the chunking only really impacts the application/json media type. This is because of historical reasons: the JSON serialisation is very costly and was blocking the node for noticeable spans of times. The serialisation to binary could be improved to benefit from chunking but this requires modifying the de/serialisation backend.

OkStream#

`OkStream is for returning not one single value but a sequence of different values that a variable can have in the octez-node. E.g., the RPC entry point /monitor/heads/<chain_id> sends a sequence of blocks, one for each time the node changes head on the chain passed as parameter.

The server transmits each new value as a chunk using the chunk transfer encoding (see above). Unlike with `OkChunk each of the chunk transmitted for `OkStream is a fully formed element of a stream. The client doesn’t concatenate the chunks together: it decodes them one after the other.

        sequenceDiagram
    participant client as client
    participant server as server
    participant handler as handler
    participant stream as stream
    client-->server: handshake
    client->>server: data (HTTP request)
    server->>handler: call service handler
    handler->>handler: compute
    activate stream
    handler->>server: return OkStream(stream)
    server->>client: data (HTTP response, 200)
    server->>stream: next
    stream->>server: value
    server->>client: data
    server->>stream: next
    stream->>server: value
    server->>client: data
    server->>stream: next
    stream->>server: value
    server->>client: data

The server never closes the connection (unless the stream ends, which is not the case for the values monitored in the Tezos stream RPCs).

The payload of the `OkStream constructor is a stream which is essentially a function next returning a promise for the next available value:

type 'a stream = {next : unit -> 'a option Lwt.t; shutdown : unit -> unit}

The resto server (resto/src/server.ml) transforms this stream into an Lwt_stream and passes it to cohttp which uses it to request new values to be transmitted.

Software stacks#

There are a number of modules and libraries involved in the RPC system of Tezos. This section presents them by theme.

Declaring#

In the “declaring” part of the stack, the services are merely described: how many parameters and of what type, what type of value is returned, etc.

The services are declared in multiple files peppered around the source tree. E.g., the p2p-related services are declared in src/lib_p2p_services/, module P2p_services . These declarations are split from the registration so that both the serving and the querying stacks can depend on it without introducing unneeded dependencies.

The files declare services by calling into src/lib_rpc/RPC_service.ml the module Service which:

  • instantiates the functor MakeService from resto/src/resto.ml with a de/serialisation process, and

  • specialises the service type and constructors with the error-management type tzresult

        %%{init: {"flowchart": {"htmlLabels": false}} }%%
graph TD
  classDef default font-size:95%
  Services[src/lib_*_services/] --> RPCservices[src/lib_rpc/RPC_services.ml]
  RPCservices --> Restoservices[resto/src/resto.ml]

Serving#

In the “serving” part of the stack, the queries to the services are answered.

Setting up the serving part is done in two phases.

First, the services are assembled into a directory, by declaring a directory and registering services into it. In this step, the services are associated to a handler: the procedure in Remote Procedure Call. This happens in multiple files peppered around the source code, generally in modules which have “directory” in their names. E.g., src/lib_shell/chain_directory.ml.

The registration into directory is done by calling into src/lib_rpc/RPC_directory.ml which instantiates the functor Make from resto/src/resto_directory.ml with a de/serialisation process. It also adds a layer of error-management.

Second, the assembled directory is used to initialise and start a server. This is done by passing the directory to the functions in src/lib_rpc_http/RPC_server.ml.

src/lib_rpc_http/RPC_server.ml instantiates the functor in resto/src/server.ml and shadows a few functions.

resto/src/server.ml translates the directory passed during initialisation into a dispatch callback: a function which, given a request’s method and path will find the corresponding service (by calling the lookup function in resto/src/resto_directory.ml) and call its handler. The callback also includes a significant amount of legwork related to de/serialisation of service arguments and outputs, error management, access-control checks ans so on. It then passes this callback to cohttp.

The cohttp library handles the parsing and printing of HTTP message, and passes this information to the callback it was given.

The cohttp library delegates the network management (bind, accept, close, etc.) to the conduit library.

        %%{init: {"flowchart": {"htmlLabels": false}} }%%
graph TD
  classDef default font-size:90%
  Node[src/bin_node/] --> RPCServer[src/lib_rpc_http/RPC_server.ml]
  RPCServer --> Restoserver[resto/src/server.ml]
  Restoserver --> Cohttp[cohttp-server]
  Cohttp --> Conduit[conduit]

  Node --> Dirs[src/lib_*/*_directory.ml]
  Dirs --> RPCdirs[src/lib_rpc/RPC_directory.ml]
  RPCdirs --> Restodirs[resto/src/resto_directory.ml]

  subgraph declaring
    Services[src/lib_*_services/]
  end

  Dirs --> Services
  Restoserver --> Restodirs

The lifetime of a request#

The description of the stack above, can also be displayed as a sequence diagram which shows the lifetime of a request.

        sequenceDiagram
    participant conduit as conduit
    participant cohttp as cohttp
    participant server as resto-server
    participant dirs as resto-directory
    participant service as service
    conduit->>cohttp: data (HTTP request)
    cohttp->>cohttp: parsing
    cohttp->>server: call (with request data)
    server->>dirs: lookup
    dirs->>server: service
    server->>service: call service handler
    service->>service: handler
    service->>server: return handler response
    server->>cohttp: return HTTP response
    cohttp->>cohttp: printing
    cohttp->>conduit: data (HTTP response)

Querying#

In the “querying” part of the stack, queries to services are formed and sent, and then the responses are parsed. This is used by the different executables to communicate with other executables. Most commonly this is used by octez-client to communicate with octez-node.

The octez-client (or another binary) obtains a description of the some services from the src/lib_*_services files. This is one of the reason service declaration and registration are separate steps: the former can be used by clients were the handler wouldn’t necessarily make sense.

The octez-client instantiates a client context object from src/lib_client_base_unix/client_context_unix.ml. This object is passed around the code under the variable name cctxt and it is responsible for the side-effects (both making RPC calls through the network and logging and displaying results and accessing local keys from storage and all).

The aim of this abstraction is essentially dependency injection: allowing the native client to run on unix using the unix context client, allowing other clients to run on, say, JavaScript using a specialised context for this. The ability to run the client on other backends than native unix application is a discontinued project and this abstraction has no purpose anymore.

The instantiation of the unix client context in src/lib_client_base_unix/client_context_unix.ml instantantiates (via the class inheritance mechanism) a unix rpc context defined in src/lib_rpc_http/RPC_client_unix.ml.

The code of src/lib_rpc_http/RPC_client_unix.ml is a functor application of the logic defined in src/lib_rpc_http/RPC_client.ml. The functor application sets up some retry-on-failure mechanism around the default cohttp client.

The code in src/lib_rpc_http/RPC_client.ml is a wrapper around resto/src/client.ml. The wrapper provides:

  • glue between the logging mechanism of resto and Octez

  • error-management and error-related UI/UX (translating HTTP errors into more readable messages)

  • media-types management and de/serialisation.

        %%{init: {"flowchart": {"htmlLabels": false}} }%%
graph TD
  classDef default font-size:95%
  subgraph declaring
    Services[src/lib_*_services/]
  end

  Client[src/bin_client] --> Services
  Client --> Libclientunix[src/lib_client_base_unix/client_context_unix.ml]
  Libclientunix --> RPCclientunix[src/lib_rpc_http/RPC_client_unix.ml]
  RPCclientunix --> RPCclient[src/lib_rpc_http/RPC_client.ml]
  RPCclient --> Context[src/lib_rpc/RPC_context.ml]
  RPCclient --> Restoclient[resto/src/client.ml]
  RPCclientunix ----> Cotthpclient[cohttp-client]

Debugging#

If you want to learn more about the exchange of RPCs between node and client you can pass the option -l and the client will print all the calls with their input/output.

A useful tool to manipulate JSON is jq.

To enable the logs for RPC-related components, prepend Tezos scripts with TEZOS_LOG="*->debug" and COHTTP_DEBUG=true.

See also#
